Well Depth(m): 1): Pumping water from boreholes: please provide the vertical height from the static water level to the top of the well casing;
2): Pumping water from a river: please fill in 0 for this value.

Horizontal Distance(m): 1): Distance from the water source (top of the well casing or other water source like a river) to desired destination.

Tank Height(m): 1): Vertical height from water source (top of the well casing or other water source like a river) to desired destination(such as water tank)

Flow(m³/h): 1): The amount of water required per hour

All Products

WBS AC/DC 3inch Submersible Solar Screw Bore Well Pump Stainless Steel

3DSS2-150-72-750-A/D
3DSS2.2-180-72-1100-A/D

Head(m)	150	142	133	124	113	100	87	62	45	25	0
Flow(m³/h)	0	0.2	0.4	0.6	0.8	1	1.2	1.4	1.6	1.8	2

Head(m)	180	171	162	151	138	124	108	92	74	53	30	0
Flow(m³/h)	0	0.2	0.4	0.6	0.8	1	1.2	1.4	1.6	1.8	2	2.2

WBS DC Replacement Controller for Solar Pump - Only for WBS Solar DC Pump

WBS 4inch AC/DC Solar Water Pump S/S Impeller Encapsulated Water-Filled Motor 4DFS5.7-83-750

4DFS5.7-83-750

Head(m)	10	20	30	40	50	60	70
Flow(m³/h)	5.7	4.9	4	3.1	2.3	1.6	1.1

WBS 280W Poly Crystalline Module 30V with MC4 Connector 60 Cell High Efficiency

WBS DC Peripheral Vortex Surface Solar Pump QB Wholesale Price

DQB2.0-25-24-210
DQB2.0-30-24-280
DQB3.0-50-48-550
DQB3.0-60-72-750

Head(m)	24	20	16	10	6	0.3
Flow(m³/h)	0	0.23	0.67	1.12	1.52	1.88

Head(m)	30	22	18	15	8	4	0.3
Flow(m³/h)	0	0.42	0.75	0.99	1.36	1.61	1.88

Head(m)	50	44	36	31	21	11	2	0.6
Flow(m³/h)	0	0.4	0.93	1.23	1.59	2.01	2.55	2.61

Head(m)	60	54	39	26	17	10	3	0.7
Flow(m³/h)	0	0.45	0.89	1.42	1.85	2.22	2.64	2.7

WBS 500w DC Solar Powered Pool Pump for Swimming Pool Variable-Speed Factory Price

DLP15-14-48-500

Head(m)	13	12	11	10	8	7	4	0.6
Flow(m³/h)	0	1.98	3.89	5.84	8.07	9.4	11.95	15.18

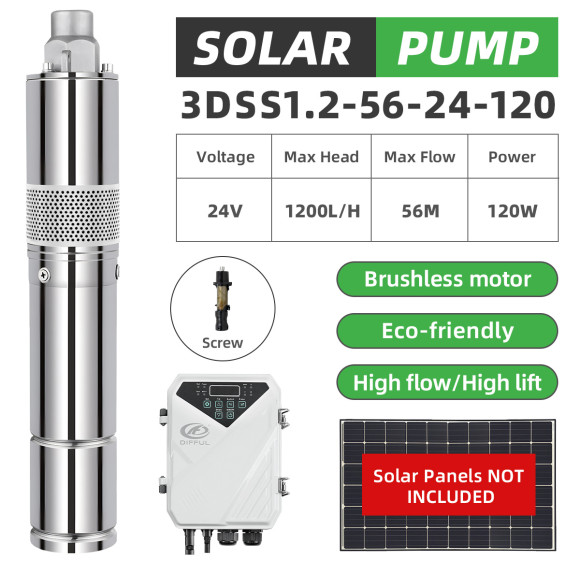

WBS Solar Submersible Bore Well Pump 3 inch Stainless Steel Screw Pump Australia Stock [3DSS Series]

3DSS0.5-28-12-80
3DSS1.2-56-24-120
3DSS1.2-80-36-210
3DSS1.7-120-48-500
3DSS2.0-150-48-750
3DSS2.0-150-72-750
3DSS2.2-180-72-1100

Head(m)	28	24	22	20	17	14	10	8	1
Flow(m³/h)	0	0.1	0.15	0.2	0.25	0.3	0.35	0.4	0.47

Head(m)	56	43	37	35	26	24	17	8	1
Flow(m³/h)	0	0.15	0.34	0.51	0.73	0.82	1.01	1.21	1.28

Head(m)	80.98	70.58	60.58	50.58	40.79	30.8	20.8	10.4	1.01
Flow(m³/h)	0.07	0.19	0.3	0.37	0.49	0.58	0.7	0.82	0.94

Head(m)	100.97	90.98	80.57	70.88	60.78	50.48	40.38	30.39	20.29	10.6	0.4
Flow(m³/h)	0.21	0.37	0.53	0.67	0.79	0.91	1.04	1.15	1.25	1.35	1.48

Head(m)	150	142	133	124	113	100	87	62	45	25	0
Flow(m³/h)	0	0.2	0.4	0.6	0.8	1	1.2	1.4	1.6	1.8	2

Head(m)	150	142	133	124	113	100	87	62	45	25	0
Flow(m³/h)	0	0.2	0.4	0.6	0.8	1	1.2	1.4	1.6	1.8	2

Head(m)	180	171	162	151	138	124	108	92	74	53	30	0
Flow(m³/h)	0	0.2	0.4	0.6	0.8	1	1.2	1.4	1.6	1.8	2	2.2

WBS AC/DC Replacement Controller for Solar Pump - Only for WBS Solar AC/DC Pump (below 2.2kw)

WBS Solar Pump Monitor for Resin-Encapsulted Motor DC Pump Timer Liquid Tracker

WBS AC/DC 3inch Solar Submersible Bore Well Pump Stainless Steel Impeller High Quality Domestic

3DSC4.8-95-110-750-A/D
3DSC4.8-110-150-1100-A/D
3DSC4.8-130-200-1500-A/D

Head(m)	95	88	80	70	60	50	40	30	20	10
Flow(m³/h)	0	0.58	0.71	0.9	1.25	1.8	2.35	3	3.7	4.4

Head(m)	100	90	80	70	60	50	40	30	20	10
Flow(m³/h)	0.5	1	1.5	1.9	2.3	2.6	3.3	3.5	4.2	4.7

Head(m)	120	110	100	90	80	70	60	50	40	30	20	10
Flow(m³/h)	0.8	1.5	1.8	2.2	2.6	2.9	3.4	3.9	4.4	4.6	5.1	5.6

WBS 4inch AC/DC Solar Water Pump S/S Impeller Water-Filled Motor 4DFS5.9-107-1100

4DFS5.9-107-1100

Head(m)	10	20	30	40	50	60	70	80	90
Flow(m³/h)	5.8	5.4	4.8	4.2	3.5	2.8	2.1	1.7	1.3

WBS 900w AC/DC Hybrid Solar Pool Pump for Swimming Pool in Australia Wholesale price

DLP20-19-72-900-A/D

Head(m)	19	18	17	12	9	6	1
Flow(m³/h)	0	4.02	8.4	11.29	14.61	16.28	19.42

WBS DC brushless 2-inch solar pump with plastic impeller solar deep well pump

2DPC1.5-35-24-200
2DPC1.7-45-24-300
2DPC1.7-64-48-400

Head(m)	30	25	21	14	10	7
Flow(m³/h)	0.24	0.5	0.75	1	1.1	1.28

Head(m)	40	35	30	25	20	15	10	5
Flow(m³/h)	0.4	0.6	0.9	1.05	1.2	1.4	1.5	1.65

Head(m)	55	50	40	32	26	18	7
Flow(m³/h)	0.27	0.49	0.9	1	1.3	1.4	1.6

WBS 335W Poly Crystalline Module 36V with MC4 Connector 72 Cell High Efficiency

WBS DC Solar Power Surface Centrifugal Pumps Domestic Solar Booster Pump Price Water Transfer

DCPM6-24-48-550
DCPM21-14-72-750
DCPM26-15-72-1100
DCPM55-17-110-1500

Head(m)	24	21	18	15	12	9	6	3	0
Flow(m³/h)	0	2	3.6	4.5	4.9	5.2	5.5	5.8	6

Head(m)	14	13	12	11	9	6	3	1	0
Flow(m³/h)	0	4	6	8	11	15	18	20	21

Head(m)	15	14	12	10	9	8	6	3	1	0
Flow(m³/h)	0	4	8	12	14	16	19	23	25	26

Head(m)	17	16	15	14	13	11	10	9	8	6	4	3	1	0
Flow(m³/h)	0	4	12	16	20	25	28	32	36	40	44	48	52	55

WBS AC/DC Replacement Controller for Solar Pump - Only for WBS Solar AC/DC Pump (3KW&4KW)

WBS AC/DC 4inch Solar Submersible Bore Well Pump Stainless Steel Impeller High Quality Durable

4DSC5.2-67-110-750-A/D
4DSC4.8-203-200-1500-A/D
4DSC5.2-101-150-1100-A/D
4DSC5.2-146-200-1500-A/D
4DSC7.5-80-150-1300-A/D
4DSC7.5-100-200-1500-A/D
4DSC11-60-200-1500-A/D
4DSC19-35-200-1500-A/D
4DSC25-26-200-1500-A/D
4DSC5.2-255-300-2200-A/D
4DSC7.5-150-300-2200-A/D
4DSC11-120-300-2200-A/D
4DSC19-60-300-2200-A/D
4DSC30-36-300-2200-A/D

Head(m)	60	50	40	30	10	20	10
Flow(m³/h)	1	1.8	2.7	3.7	5.2	4.4	5.3

Head(m)	175	145	120	100	80	70	60	45	5
Flow(m³/h)	0.5	1	1.5	2	2.6	3	3.5	4	5

Head(m)	100	90	75	60	50	40	30	20
Flow(m³/h)	0.5	1.5	2.1	2.9	3.5	4.1	4.8	5.3

Head(m)	137	130	120	100	85	75	65	50	40	30
Flow(m³/h)	0.5	1	1.5	2	2.5	3	3.5	4.1	4.5	5.1

Head(m)	75	70	65	50	40	30	20
Flow(m³/h)	1	2.2	3	4.3	5.5	6.2	7

Head(m)	98	90	78	62	50	36	9
Flow(m³/h)	1	2	3	4	5	6	7.4

Head(m)	60	56	53	40	48	53	36	30	22	2
Flow(m³/h)	1	2	3	4	5	6	7	8	9	10.9

Head(m)	35	30	24	20	18	12	4
Flow(m³/h)	2	7	10	11.4	12	14	16

Head(m)	25	24	23	20	16	12	8.3	5
Flow(m³/h)	3	6	9	12	15	18	21	24

Head(m)	233	222	185	155	134	116	100	83	64	43	25
Flow(m³/h)	0.55	1	1.5	2	2.5	3	3.5	4	4.5	5	5.2

Head(m)	135	127	108	87	67	45	30	20
Flow(m³/h)	1	2	3	4	5	6	6.5	6.8

Head(m)	120	115	110	92	80	68	57	47	30	10
Flow(m³/h)	1.1	2	3	4	5	6.1	7	8	9.1	10.4

Head(m)	60	55	52	50	42	33	25	14	5
Flow(m³/h)	2	4	6	8	10	12	14	16	17.3

Head(m)	38	35	33	28	22	16.5	9	5
Flow(m³/h)	3	9	12	15	18	21	24	25.3

WBS 4inch AC/DC Solar Water Pump S/S Impeller Water-Filled Motor 4DFS6.1-129-1300

4DFS6.1-129-1300

Head(m)	10	20	30	40	50	60	70	80	90	100
Flow(m³/h)	6	5.7	5.3	4.9	4.3	3.8	3.2	2.7	2.3	1.9

WBS 360W Mono Crystalline Module 36V with MC4 Connector 60 Cell High Efficiency - Only for Bulk

WBS AC/DC Brushless DCPM Solar Surface Pump Booster Pump Factory Direct Sales Irrigation

DCPM21-14-110-750-A/D
DCPM26-15-110-1100-A/D
DCPM50-17-110-1500-A/D

Head(m)	0	5	7	9	11	13
Flow(m³/h)	21	20	18	16	14	10

Head(m)	6	10	11	13	14.5	15
Flow(m³/h)	21	18	16.5	13	8	2

Head(m)	3	5	6	7.5	9	10	11.5	13	14.3
Flow(m³/h)	47	40	35	30	25	20	15	10	5
