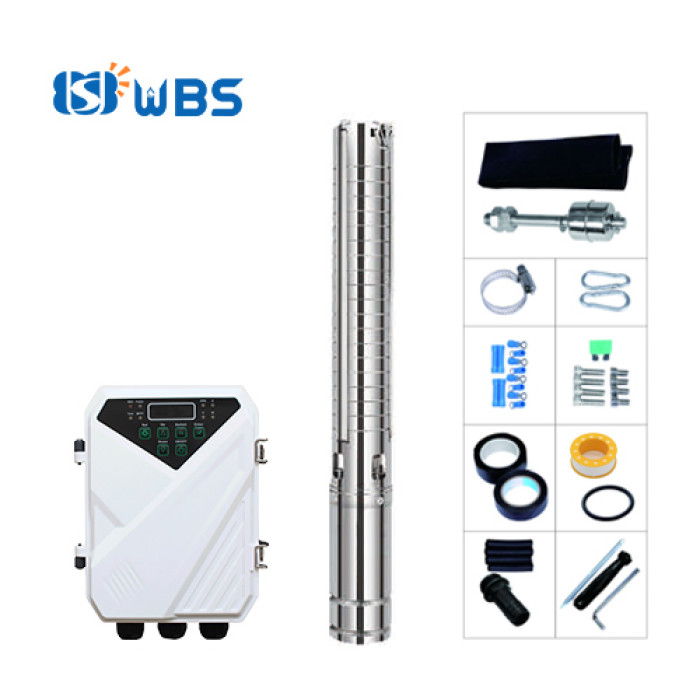

WBS 3-inch solar deep well pump with S/S impeller solar pump store online sale [3DSC Series]

WBS 3-inch solar deep well pump with S/S impeller solar pump store online sale [3DSC Series]
WBS 3-inch solar deep well pump with S/S impeller solar pump store online sale [3DSC Series]WBS 3-inch solar deep well pump with S/S impeller solar pump store online sale [3DSC Series]WBS 3-inch solar deep well pump with S/S impeller solar pump store online sale [3DSC Series]WBS 3-inch solar deep well pump with S/S impeller solar pump store online sale [3DSC Series]WBS 3-inch solar deep well pump with S/S impeller solar pump store online sale [3DSC Series]
CategoriesSolar DC Bore Pumps
Trademark/BrandWBS
Model3DSC
Typesolar submersible pump with s/s impeller
materialstainless steel
Package typewooden case
Applicationirrigation；Drinking Water
Pump Warranty2 years
Solar panels Warranty10 years
FOB portNingbo, Shanghai
Terms of PaymentPaypal
DownloadDownload pdf
Update TimeOct 31,2025
Contact Now
Favorites
Detail Information
Product Description
Parameters and Solar Panels
FAQ
Feedback


3DSC 3-inch solar water pump with stainless steel impeller:

  • The 3-inch stainless steel impeller pump is stainless steel impeller, stainless steel outlet, stainless steel connector, stainless steel bearings and stainless steel pump body. Good performance and long service life.

  • Its main application scenes are:

    The 3-inch solar well pump with stainless steel impeller for Irrigation, drinking Water, poultry farming, drip irrigation, and garden irrigation.

3-inch solar deep well pump

HOW TO CHOOSE A PUMP

1Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

2Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according to different folw and prices.

3DSC 3-INCH SOLAR WATER PUMP WITH S/S IMPELLER PRODUCT PACKAGING

1What we get for you(Package Include):

- 1 x 3inch DC stainless steel impeller solar submersible pump with one 2m cable

- 1 x Pump controler with MPPT function

- 1 x Stainless steel float swith (sensor for tank)

- 1 x Pump outlet joint connector

- 1 x Splice kit for cable join

- 1 x Splice kit for waterproof

2What You need to get by yourself: (Package DO NOT Include)

- Suitable solar panels. There’re some suggestions in the instruction book.

- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

- Poly pipe from pump to water tank. ( recommend 1.25 inch or over diameter poly pipe)

- Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

3DSC 3-INCH SOLAR WATER PUMP WITH S/S IMPELLER PACKAGING PROCESS

3DSC 3-INCH SOLAR WATER PUMP WITH S/S IMPELLER PARAMETER

3" SOLAR PUMP WITH S/S IMPELLER
ModelPowerVoltageMax flow(m3/h)Max head(m)Outlet(inch)
3DSC4-35-24-300300244351.25"
3DSC4-50-48-400400484501.25"
3DSC4-80-48-600600484801.25"
3DSC4.8-95-72-750750724.8951.25"
3DSC4.8-112-72-11001100724.81121.25"
3DSC4.8-112-110-110011001104.81121.25"
3DSC4.8-135-110-150015001104.81351.25"

3DSC S-INCH SOLAR WATER PUMP WITH S/S IMPELLER CURVE

The solar PV system voltage needs to meet the voltage range in the figure below.

For example: The 3DSC4-35-24-300 model matches the solar panel voltage between 18V~48V.

HOW TO CHOOSE SOLAR PANEL

  • 3DSC4-35-24-300

    3DSC4-35-24-300 SOLAR PANEL

  • 3DSC4-50-48-400

    3DSC4-50-48-400 SOLAR PANEL

  • 3DSC4-80-48-600

    3DSC4-80-48-600 SOLAR PANEL

  • 3DSC4.8-95-72-750

    3DSC4.8-95-72-750 SOLAR PANEL

  • 3DSC4.8-112-72-1100

    3DSC4.8-110-72-1100 SOLAR PANEL

  • 3DSC4.8-112-110-1100

    3DSC4.8-110-110-1100 SOLAR PANEL

  • 3DSC4.8-135-110-1500

    3DSC4.8-130-110-1500 SOLAR PANEL

CONTROLLER INTERNAL WIRING DIAGRAM

  • Shipping Policy?

    Your item usually will be shipped within 1 business day once the full payment is confirmed. Every single item will be carefully packed......MORE

  • Where to ship?

    We have three warehouses, Zhejiang, China and Houston,Texas, USA and sydney, Australia. We will arrange a warehouse closer to you to deliver the goods to you.

  • What if the product has quality problems?

    Our water pump has a warranty period of two years and the solar panel warranty period is 10 years. During the warranty period, any quality problems caused by non-human factors were found. We will replace a new pump for you for free.
