Timer for WBS Solar Water Pump Signal Control Digital Time Setting Clock Shut

Timer for WBS Solar Water Pump Signal Control Digital Time Setting Clock Shut

Timer for WBS Solar Water Pump Signal Control Digital Time Setting Clock Shut
Timer for WBS Solar Water Pump Signal Control Digital Time Setting Clock ShutTimer for WBS Solar Water Pump Signal Control Digital Time Setting Clock ShutTimer for WBS Solar Water Pump Signal Control Digital Time Setting Clock Shut
CategoriesTools & Replacements
BrandWBS
ModelWBS-Timer
SuitableFor WBS solar pump Only
Battery TypeAAA(4pcs)
Connection TypeCable connect with WBS Pump Controller
Download DOCpdf icon
Update TimeApr 24,2024
Detail Information

Introduction

This timer is desinded for WBS solar pump. By using this time, you can set the working time of the WBS pump easily. This timer realizes startup and shutdown by connecting the water tower signal (water well signal). When the time reaches the start-up time of the timer, the water tower signal (water well signal) of the controller itself disappears, and there is a certain waiting time before startup, so there will be a corresponding time delay.
It's only for WBS solar pump. CAN NOT use for other devide. If you order by mistake, we will not accept return.

Connection

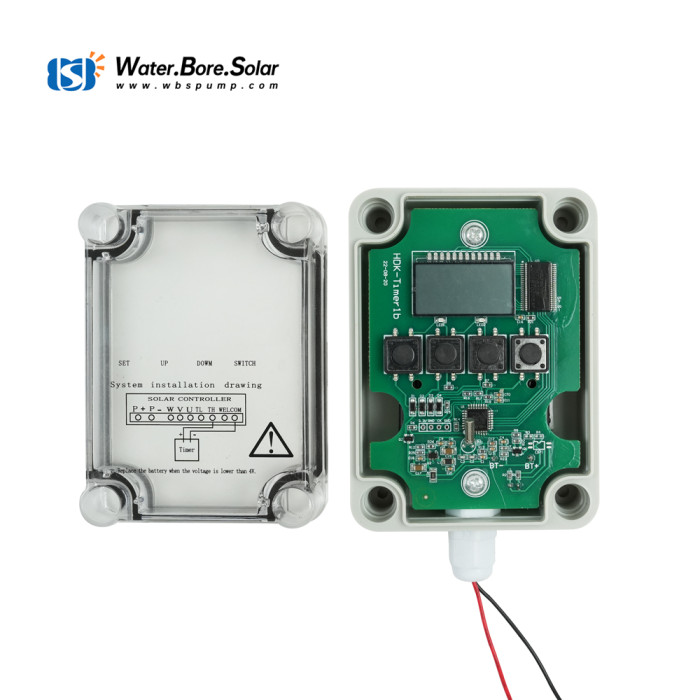

The black wire is connected to the COM port, and the red wire is connected to the WEL port as the below picture shown.

Battery

You will need 4pcs AAA batteries(not included) to run the timer. Normally, it can last 3 months most with 4pcs timer.
(When the battery voltage is too low, it may cause abnormal power on and off. To avoid losses, please check frequently and replace the battery in time.)
