WBS 4-inch solar power pump with S/S impeller solar submersible pump for irrigation Wholesale price（free shipping）

WBS 4-inch solar power pump with S/S impeller solar submersible pump for irrigation Wholesale price（free shipping）
WBS 4-inch solar power pump with S/S impeller solar submersible pump for irrigation Wholesale price（free shipping）WBS 4-inch solar power pump with S/S impeller solar submersible pump for irrigation Wholesale price（free shipping）WBS 4-inch solar power pump with S/S impeller solar submersible pump for irrigation Wholesale price（free shipping）WBS 4-inch solar power pump with S/S impeller solar submersible pump for irrigation Wholesale price（free shipping）WBS 4-inch solar power pump with S/S impeller solar submersible pump for irrigation Wholesale price（free shipping）
  • Price
  • US $451.18-746.18/piece
  • Model
  • 4DSC
  • Unit Price
  • Order QuantityUnit PriceDelivery period
    1 - 10000US $451.18 /piece7 day
  • Quantity
  • piece
Contact Now
Add to cart
payment
Detail Information
  • Type:solar submersible pump with S/S impeller
  • material:stainless steel
  • Package type:wooden case
  • Application:irrigation；Poultry Farming
  • Pump Warranty:2 years
  • Solar panels Warranty:10 years
Product Description
Parameters and Solar Panels
FAQ
Feedback


Before you read(very important):

1. Free shipping in parts such as Australia and the United States. Additional shipping charges are required in other areas.

2.If you need to buy a solar photovoltaic panel, please contact us before purchasing.

3. Some models we have stock, we can ship within 2 days. But some might need time to manufacture.

4. We are looking for distributors. If you are interested, please contact me.

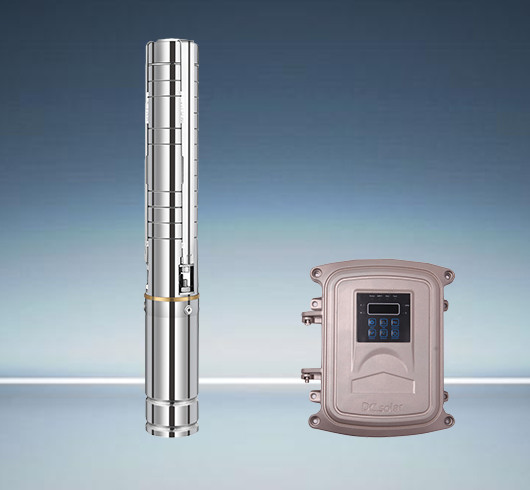

  • 4DSC 4-inch solar water pump with stainless steel impeller:

    The 4-inch stainless steel impeller pump is stainless steel outlet, stainless steel impeller, stainless steel connector, stainless steel bearings and stainless steel pump body. Good performance and long service life.The achievable flow and head are relatively high, with a maximum head of 203 meters and a maximum flow of 25 cubic meters per hour.

  • Its main application scenes are:

    The 4-inch solar well pump with stainless steel impeller for Irrigation, poultry farming, drip irrigation, Fountain system and garden irrigation.

4-inch solar submersible pump with s/s impeller

HOW TO CHOOSE A PUMP

1Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

2Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according to different folw and prices.

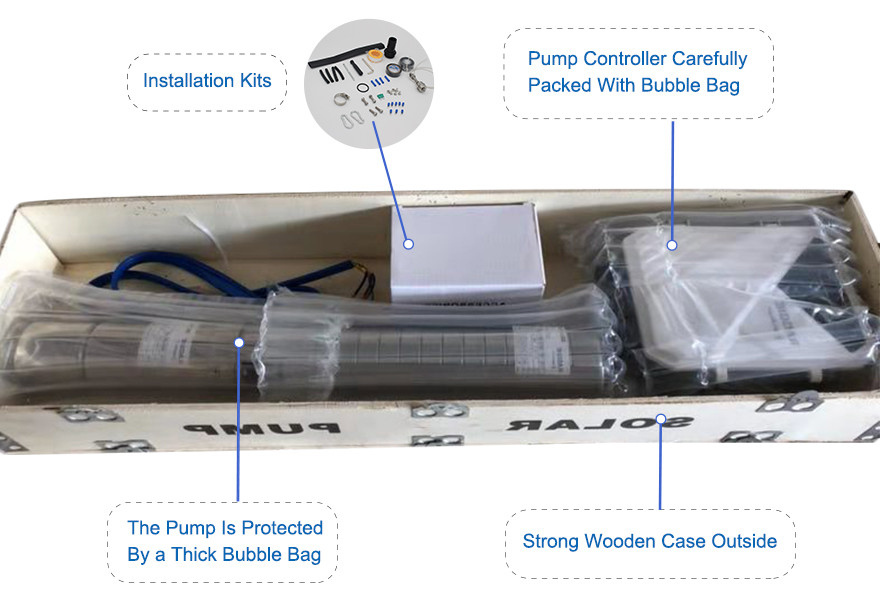

4DSC 4-INCH SOLAR WATER PUMP WITH S/S IMPELLER PRODUCT PACKAGING

1What we get for you(Package Include):

- 1 x 4inch DC S/S impeller solar submersible pump with one 2m cable

- 1 x Pump controler with MPPT function

- 1 x Stainless steel float swith (sensor for tank)

- 1 x Pump outlet joint connector

- 1 x Splice kit for cable join

- 1 x Splice kit for waterproof

2What You need to get by yourself: (Package DO NOT Include)

- Suitable solar panels. There’re some suggestions in the instruction book.

- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

- Poly pipe from pump to water tank. ( recommend 2 inch or over diameter poly pipe)

- Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

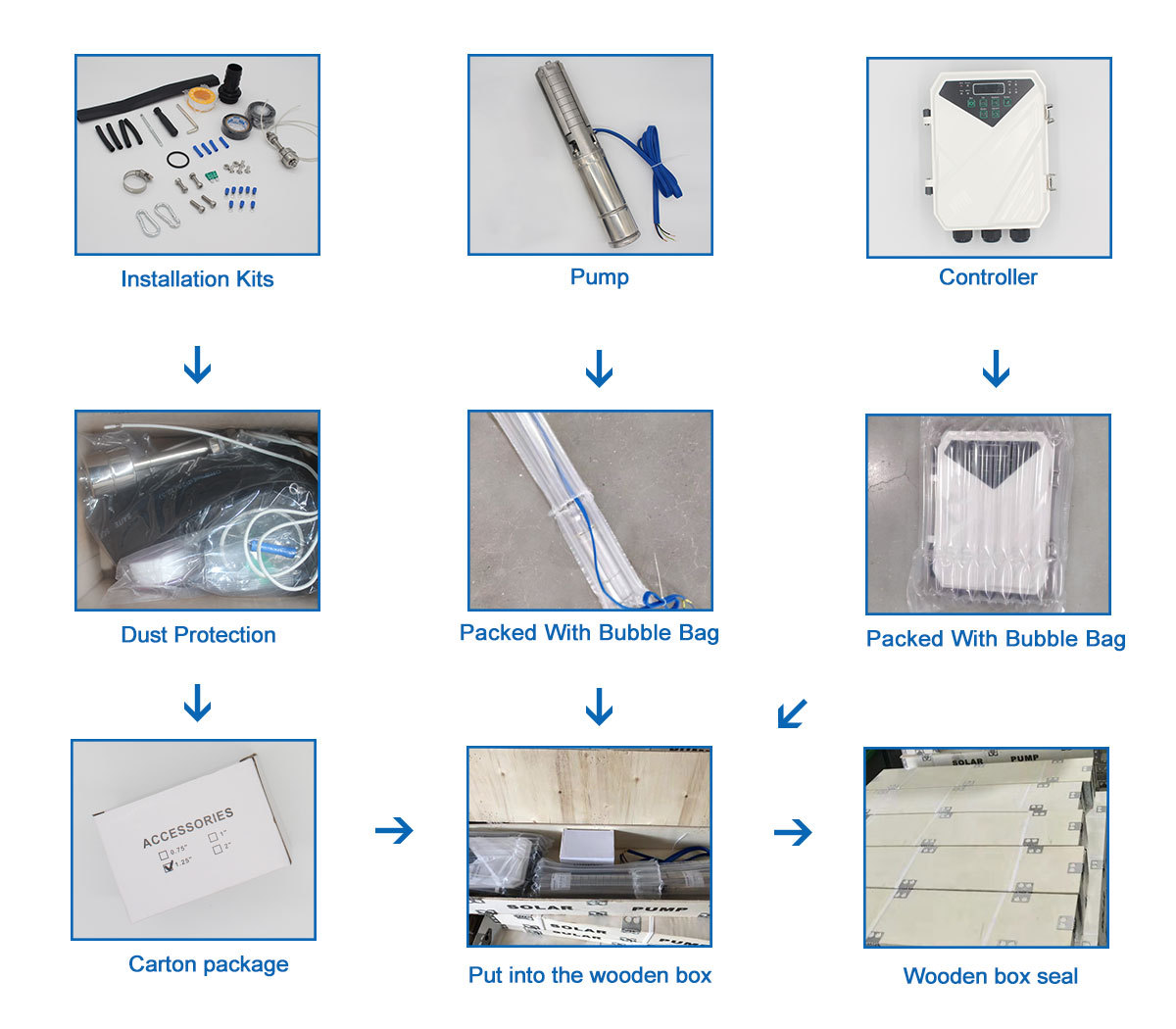

4DSC 4-INCH SOLAR WATER PUMP WITH S/S IMPELLER PACKAGING PROCESS

4DSC 4-INCH SOLAR WATER PUMP WITH S/S IMPELLER PARAMETER

4" SOLAR PUMP WITH S/S IMPELLER
ModelPowerVoltageMax flow(m3/h)Max head(m)Outlet(inch)
4DSC5.2-45-48-500500485.2451.25"
4DSC5.2-67-48-750750485.2671.25"
4DSC5.2-67-72-750750725.2671.25"
4DSC5.2-101-72-11001100725.21011.25"
4DSC5.2-101-110-110011001105.21011.25"
4DSC5.2-146-110-130013001105.21461.25"
4DSC4.8-203-110-150015001104.82031.25"
4DSC7.5-80-110-130013001107.5801.25"
4DSC7.5-100-110-150015001107.51001.25"
4DSC11-60-110-1500150011011602"
4DSC19-35-110-1500150011019352"
4DSC25-26-110-1500150011025262"

4DSC 4-INCH SOLAR WATER PUMP WITH S/S IMPELLER CURVE




The solar PV system voltage needs to meet the voltage range in the figure below.

For example: The 4DSC5.2-45-48-500 model matches the solar panel voltage between 30V~96V.

HOW TO CHOOSE SOLAR PANEL

  • 4DSC5.2-45-48-500

    4DSC5-45-48-500 SOLAR PANEL

  • 4DSC5-67-48-750

    4DSC5-67-48-750 SOLAR PANEL

  • 4DSC-5.2-67-72-750

    4DSC-5-67-72-750 SOLAR PANEL

  • 4DSC5.2-101-72-1100

    4DSC5-101-72-1100 SOLAR PANEL

  • 4DSC5.2-101-110-1100

    4DSC5-101-110-1100 SOLAR PANEL

  • 4DSC5.2-146-110-1300

    4DSC5-146-110-1300 SOLAR PANEL

  • 4DSC4.8-203-110-1500

    4DSC4.5-203-110-1500 SOLAR PANEL

  • 4DSC7.5-80-110-1300

    4DSC7-67-110-1300 SOLAR PANEL

  • 4DSC7.5-100-110-1500

    4DSC7-79-110-1500 SOLAR PANEL

  • 4DSC11-60-110-1500

    4DSC9-59-110-1500 SOLAR PANEL

  • 4DSC19-35-110-1500

    4DSC19-34-110-1500 SOLAR PANEL

  • 4DSC25-26-110-1500

    4DSC7-79-110-1500 SOLAR PANEL

CONTROLLER INTERNAL WIRING DIAGRAM

  • Shipping Policy?

    Your item usually will be shipped within 1 business day once the full payment is confirmed. Every single item will be carefully packed......MORE

  • Where to ship?

    We have three warehouses, Zhejiang, China and Houston,Texas, USA and sydney, Australia. We will arrange a warehouse closer to you to deliver the goods to you.

  • What if the product has quality problems?

    Our water pump has a warranty period of two years and the solar panel warranty period is 10 years. During the warranty period, any quality problems caused by non-human factors were found. We will replace a new pump for you for free.
