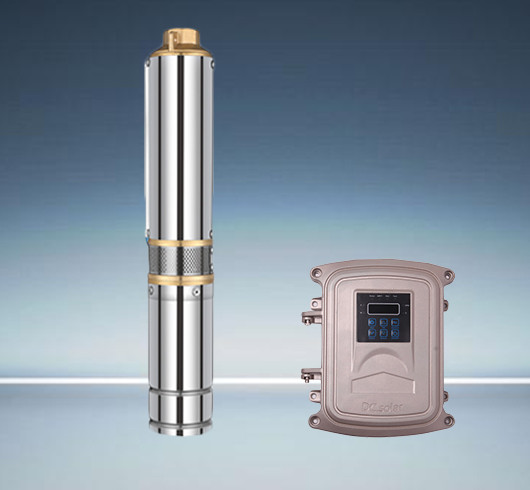

WBS 4-inch solar submersible pump with plastic impeller solar water pump for irrigation(free shipping)
PRODUCT CATALOG
USER MANUAL
WBS 4-inch solar submersible pump with plastic impeller solar water pump for irrigation(free shipping)
- Price
- US $
414.85-539.85 /piece
- Model
- 4DPC
- Unit Price
Order Quantity Unit Price Delivery period 1 - 10000 US $414.85 /piece 7 day
- Quantity
- piece
Detail Information- Type:solar submersible pump with plastic impeller
- Pump boby material:stainless steel
- Impeller material:plastic
- Package type:wooden case
- Application:irrigation;Poultry Farming
- Pump Warranty:2 years
- Solar panels Warranty:10 years
Before you read(very important):
1. Free shipping in parts such as Australia and the United States. Additional shipping charges are required in other areas.
2.If you need to buy a solar photovoltaic panel, please contact us before purchasing.
3. Some models we have stock, we can ship within 2 days. But some might need time to manufacture.
4. We are looking for distributors. If you are interested, please contact me.
4DPC 4-inch solar water pump with plastic impeller:
The 4-inch plastic impeller pump is cost-effective and has a larger flow. Maximum flow rate can reach 13 cubic meters per hour. Copper outlet, copper connector, stainless steel bearings and stainless steel pump body. Good performance and long service life.
Its main application scenes are:
The 4-inch solar well pump with plastic impeller for Flood Irrigation, poultry farming, drip irrigation, and garden irrigation.
HOW TO CHOOSE A PUMP
1Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.

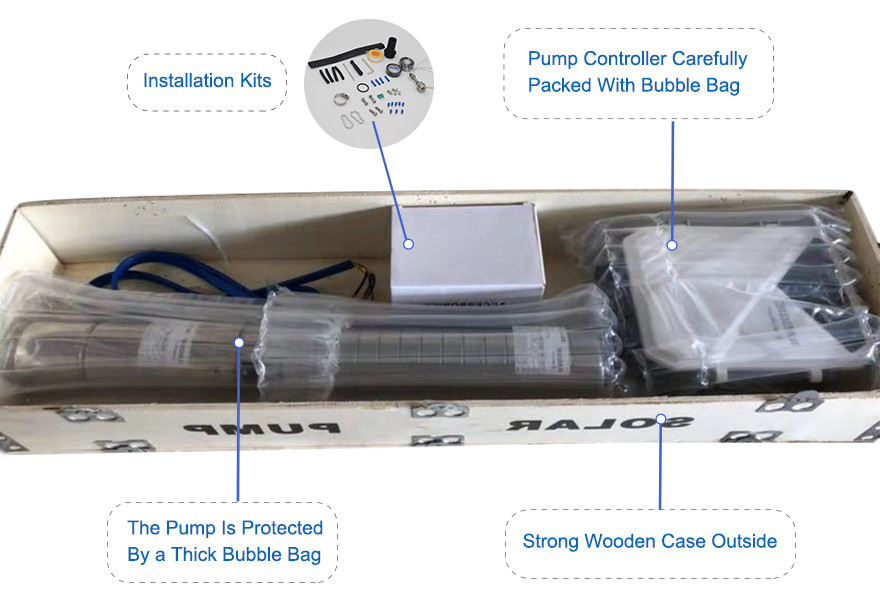

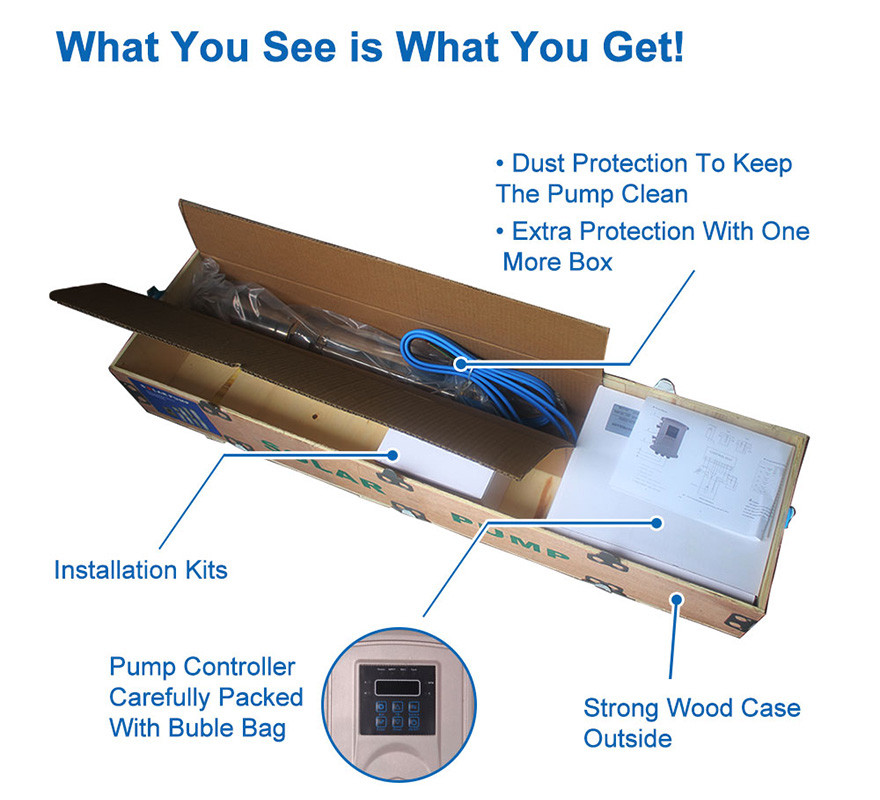

4DPC 4-INCH SOLAR WATER PUMP WITH PLASTIC IMPELLER PRODUCT PACKAGING
1What we get for you(Package Include):
- 1 x 4inch DC plastic impeller solar submersible pump with one 2m cable
- 1 x Pump controler with MPPT function
- 1 x Stainless steel float swith (sensor for tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
2What You need to get by yourself: (Package DO NOT Include)
- Suitable solar panels. There’re some suggestions in the instruction book.
- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.
- Poly pipe from pump to water tank. ( recommend 2 inch or over diameter poly pipe)
- Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

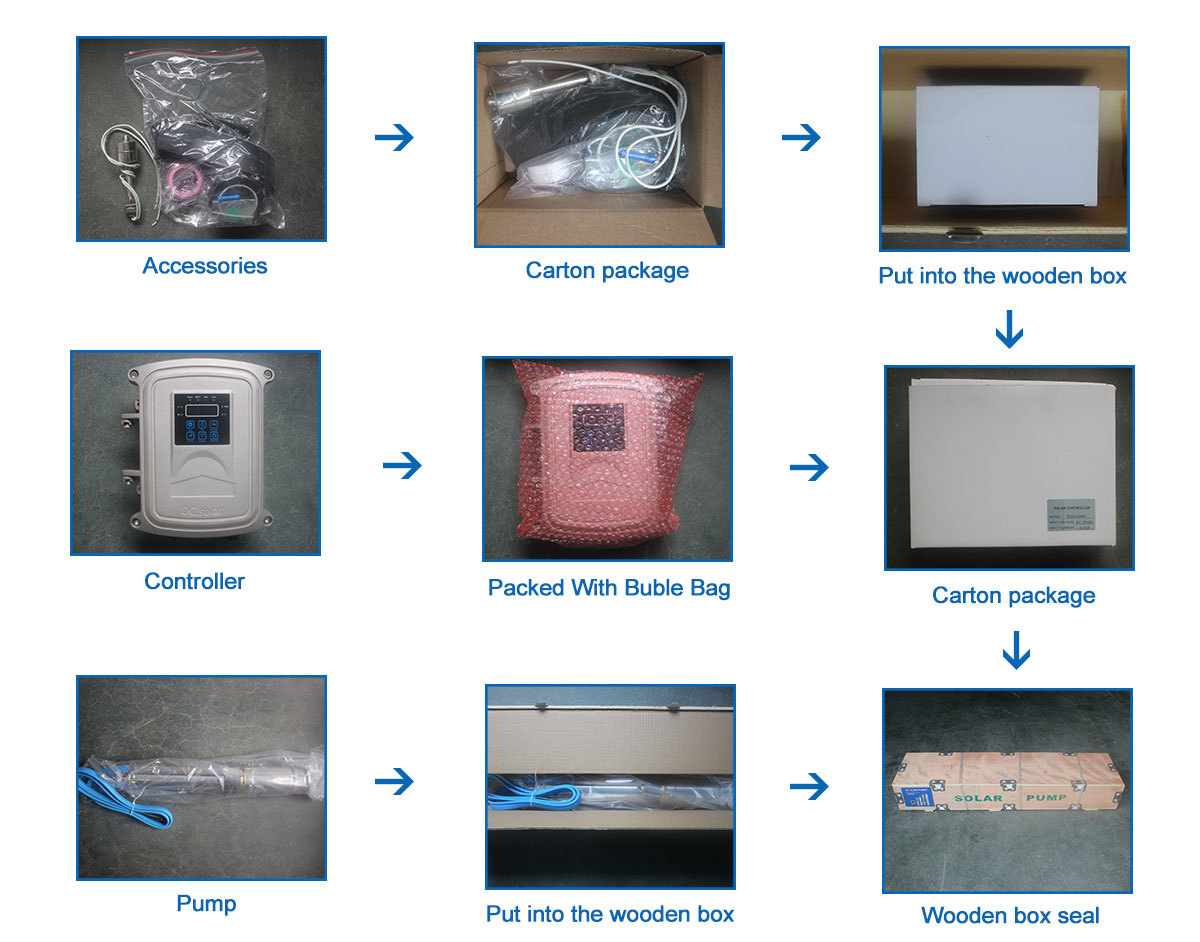

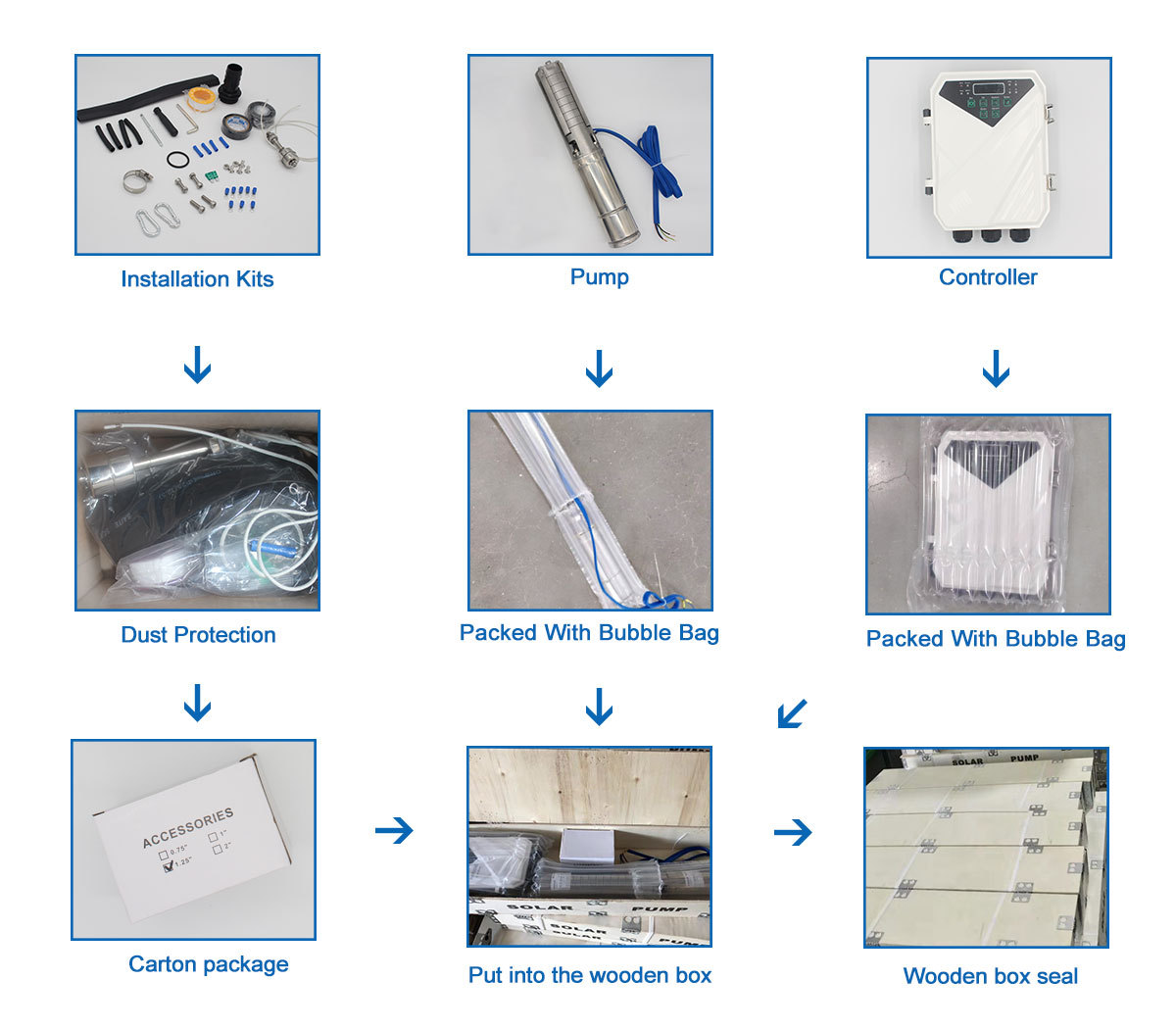

4DPC 4-INCH SOLAR WATER PUMP WITH PLASTIC IMPELLER PACKAGING PROCESS
4DPC 4-INCH SOLAR WATER PUMP WITH PLASTIC IMPELLER PARAMETER
4" SOLAR PUMP WITH PLASTIC IMPELLER Model Power Voltage Max flow(m3/h) Max head(m) Outlet(inch) 4DPC6-42-48-600 600 48 6 42 1.25" 4DPC6-42-72-600 600 72 6 42 1.25" 4DPC6-56-48-750 750 48 6 56 1.25" 4DPC6-56-72-750 750 72 6 56 1.25" 4DPC6-84-72-1100 1100 72 6 84 1.25" 4DPC6-84-110-1100 1100 110 6 84 1.25" 4DPC6-112-110-1300 1300 110 6 112 1.25" 4DPC6-135-110-1500 1500 110 6 135 1.25" 4DPC9-45-110-750 750 110 9 45 2" 4DPC9-58-110-1300 1300 110 9 58 2" 4DPC9-71-110-1500 1500 110 9 71 2" 4DPC11.5-30-72-750 750 72 11.5 30 2" 4DPC11.5-49-110-1100 1100 110 11.5 49 2" 4DPC11.5-55-110-1300 1300 110 11.5 55 2" 4DPC13-60-110-1500 1500 110 13 60 2" 4DPC 4-INCH SOLAR WATER PUMP WITH PLASTIC IMPELLER CURVE
The solar PV system voltage needs to meet the voltage range in the figure below.
For example: The 4DPC6-42-48-600 model matches the solar panel voltage between 30V~96V.
HOW TO CHOOSE SOLAR PANEL
4DPC6-42-48-600
4DPC6-42-72-600
4DPC6-56-48-750
4DPC6-56-72-750
4DPC6-84-72-1100
4DPC6-84-110-1100
4DPC6-112-110-1300
4DPC6-135-110-1500
4DPC9-45-110-750
4DPC9-58-110-1300
4DPC9-71-110-1500
4DPC11.5-30-72-750
4DPC11.5-49-110-1100
4DPC11.5-55-110-1300
4DPC13-60-110-1500
CONTROLLER INTERNAL WIRING DIAGRAM
Shipping Policy?
Your item usually will be shipped within 1 business day once the full payment is confirmed. Every single item will be carefully packed......MORE
Where to ship?
We have three warehouses, Zhejiang, China and Houston,Texas, USA and sydney, Australia. We will arrange a warehouse closer to you to deliver the goods to you.
What if the product has quality problems?
Our water pump has a warranty period of two years and the solar panel warranty period is 10 years. During the warranty period, any quality problems caused by non-human factors were found. We will replace a new pump for you for free.
I think quslity is very good.
model: 4DPC9-71-110-1500
Max head: 71 m
Max flow: 9 m³/h
Power: 1500 W
s******m
Is working well even with clouds.
model: 4DPC6-112-110-1300
Max head: 112 m
Max flow: 6 m³/h
Power: 1300 W
l******m
It is a good quality.
model:4DPC6-84-110-1100
Max head: 84 m
Max flow: 6 m³/h
Power: 1100 W
s******r
