WBS 3-inch solar pump with plastic impeller solar deep well pump for Garden watering

WBS 3-inch solar pump with plastic impeller solar deep well pump for Garden watering

WBS 3-inch solar pump with plastic impeller solar deep well pump for Garden watering
WBS 3-inch solar pump with plastic impeller solar deep well pump for Garden wateringWBS 3-inch solar pump with plastic impeller solar deep well pump for Garden wateringWBS 3-inch solar pump with plastic impeller solar deep well pump for Garden wateringWBS 3-inch solar pump with plastic impeller solar deep well pump for Garden wateringWBS 3-inch solar pump with plastic impeller solar deep well pump for Garden watering
  • Original prices
  • US $361.32-3112.32/piece
  • Activities price
  • US $325.19-2801.09/piece
  • Model
  • 3DPC
  • Unit Price
  • Order QuantityUnit PriceDelivery period
    1 - 1US $361.32 /piece7 day
  • Quantity
  • piece
Detail Information
  • Type:solar submersible pump with plastic impeller
  • Pump boby material:stainless steel
  • Impeller material:plastic
  • Package type:wooden case
  • Application:Home water, small area irrigation
  • Pump Warranty:2 years
  • Solar panels Warranty:10 years

Before you read(very important):

1. Free shipping in parts such as Australia and the United States. Additional shipping charges are required in other areas.

2.If you need to buy a solar photovoltaic panel, please contact us before purchasing.

3. Some models we have stock, we can ship within 2 days. But some might need time to manufacture.

4. We are looking for distributors. If you are interested, please contact me.

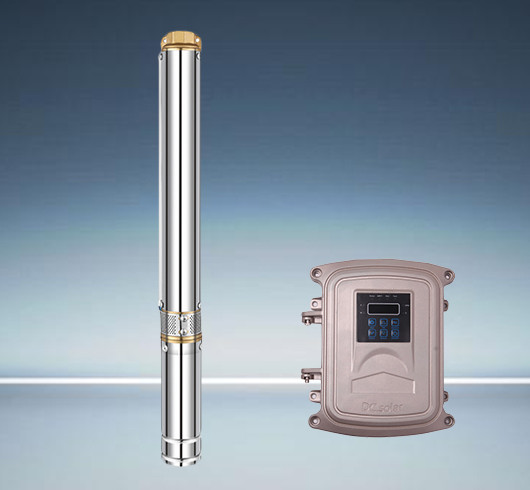

  • 3DPC 3-inch solar pump with plastic impeller:

    The plastic impeller pump is cost-effective and has a larger flow rate than the screw pump. Copper outlet, copper connector, stainless steel bearings and stainless steel pump body. Good performance and long service life.

  • Its main application scenes are:

    deep wells for washing, fish farming, cattle farming, drinking water supply, and garden irrigation.

3inch solar submersible pump

HOW TO CHOOSE A PUMP

1Confirm you technical requiremt

How deep is your well(bore hole)?

How far is the distance between tank and well?

What's you requirement about the flow(L/H)?

2Compare your requiremt with out product

Calculate"Actual Pump Head"and find the proper pump with the right head.

Then you can choose the pump you want according to different folw and prices.

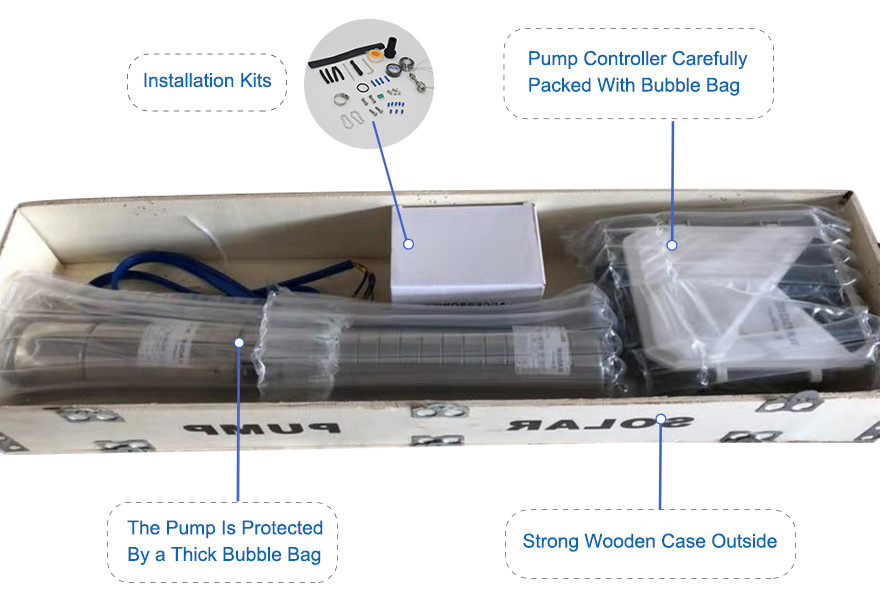

3DPC 3-INCH SOLAR PUMP WITH PLASTIC IMPELLER PRODUCT PACKAGING

1What we get for you(Package Include):

- 1 x 3inch DC plastic impeller solar submersible pump with one 2m cable

- 1 x Pump controler with MPPT function

- 1 x Stainless steel float swith (sensor for tank)

- 1 x Pump outlet joint connector

- 1 x Splice kit for cable join

- 1 x Splice kit for waterproof

2What You need to get by yourself: (Package DO NOT Include)

- Suitable solar panels. There’re some suggestions in the instruction book.

- A stainless steel wire ( called safety cable) to hold pump in bore. If pumping water from dam or river, a float set up required.

- Poly pipe from pump to water tank. ( recommend 1.25 inch or over diameter poly pipe)

- Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.

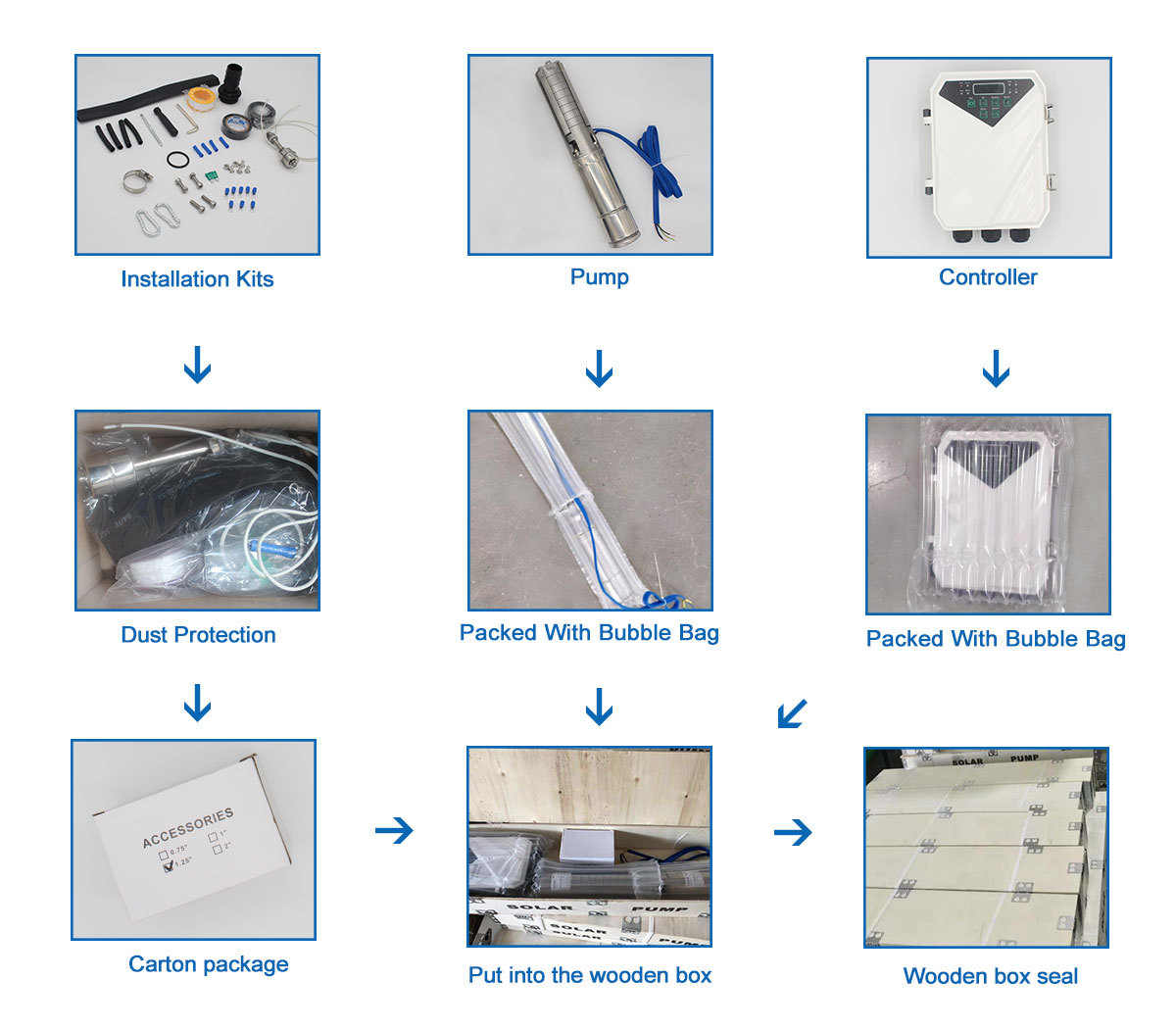

3DPC 3-INCH SOLAR PUMP WITH PLASTIC IMPELLER PACKAGING PROCESS

3DPC 3-INCH SOLAR PUMP WITH PLASTIC IMPELLER PARAMETER

3" SOLAR PUMP WITH PLASTIC IMPELLER
ModelPowerVoltageMax flow(m3/h)Max head(m)Outlet(inch)
3DPC3-35-24-300300243351.25"
3DPC3.5-47-48-400400483.5471.25"
3DPC3.5-80-48-600600483.5801.25"
3DPC3.5-80-72-600600723.5801.25"
3DPC3.5-95-48-750750483.5951.25"
3DPC3.5-95-72-750750723.5951.25"
3DPC3.8-123-72-11001100723.81231.25"
3DPC3.8-123-110-110011001103.81231.25"
3DPC3.8-155-110-130013001103.81551.25"
3DPC3.8-180-110-150015001103.81801.25"

3DPC 3-INCH SOLAR PUMP WITH PLASTIC IMPELLER CURVE

The solar PV system voltage needs to meet the voltage range in the figure below.

For example: The 3DPC3-35-24-300 model matches the solar panel voltage between 18V~48V.

HOW TO CHOOSE SOLAR PANEL

  • 3DPC3-35-24-300

    3DPC3-35-24-300 SOLAR PANEL

    In the purchase option of this model is equipped with 2pc solar panel. power: 265W, open circuit voltage: 38V.

  • 3DPC3.5-47-48-400

    3DPC3-47-48-400 SOLAR PANEL

    In the purchase option of this model is equipped with 2pc solar panel. power: 315W, open circuit voltage: 45.8V.

  • 3DPC3.5-80-48-600

    3DPC3-80-48-600 SOLAR PANEL

    In the purchase option of this model is equipped with 4pc solar panel. power: 265W, open circuit voltage: 38V.

  • 3DPC3.5-80-72-600

    3DPC3-80-72-600 SOLAR PANEL

    In the purchase option of this model is equipped with 3pc solar panel. power: 315W, open circuit voltage: 45.8V.

  • 3DPC3.5-95-48-750

    3DPC3.5-95-48-750 SOLAR PANEL

    In the purchase option of this model is equipped with 4pc solar panel. power: 265W, open circuit voltage: 38V.

  • 3DPC3.5-95-72-750

    3DPC3.5-95-72-750 SOLAR PANEL

    In the purchase option of this model is equipped with 4pc solar panel. power: 265W, open circuit voltage: 38V.

  • 3DPC3.8-123-72-1100

    3DPC3.8-123-72-1100 SOLAR PANEL

    In the purchase option of this model is equipped with 6pc solar panel. power: 265W, open circuit voltage: 38V.

  • 3DPC3.8-123-110-1100

    3DPC3.8-123-110-1100 SOLAR PANEL

    In the purchase option of this model is equipped with 6pc solar panel. power: 265W, open circuit voltage: 38V.

  • 3DPC3.8-155-110-1300

    3DPC3.8-155-110-1300 SOLAR PANEL

    In the purchase option of this model is equipped with 6pc solar panel. power: 315W, open circuit voltage: 45.8V.

  • 3DPC3.8-180-110-1500

    3DSS3.8-180-110-1500 SOLAR PANEL

    In the purchase option of this model is equipped with 8pc solar panel. power: 265W, open circuit voltage: 38V.

CONTROLLER INTERNAL WIRING DIAGRAM

  • Shipping Policy?

    Your item usually will be shipped within 1 business day once the full payment is confirmed. Every single item will be carefully packed......MORE

  • Where to ship?

    We have three warehouses, Zhejiang, China and Houston,Texas, USA and sydney, Australia.  We will arrange a warehouse closer to you to deliver the goods to you.

  • What if the product has quality problems?

    Our water pump has a warranty period of two years and the solar panel warranty period is 10 years. During the warranty period, any quality problems caused by non-human factors were found. We will replace a new pump for you for free.

  • Can this pump be used for irrigation?

    This pump is used for home water and Small area irrigation. If you water consumption is not very large, you can consider buying this pump. Specific circumstances can contact us for detailed advice.
