- WBS DC Peripheral vortex surface solar pump QB solar surface pump Wholesale price（free shipping）Detail Information
- Type:solar power vortex pump
- material:cast iron
- Package type:wooden case
- Application:irrigation；drinking water
- Pump Warranty:2 years
- Solar panels Warranty:10 years
The Chinese New Year is approaching. From January 8th to February 15th, only certain models of Australian overseas warehouses will be shipped. Please contact us for specific model information.
Before you read(very important):
1. Free shipping in parts such as Australia and the United States. Additional shipping charges are required in other areas.
2.If you need to buy a solar photovoltaic panel, please contact us before purchasing.
3. Some models we have stock, we can ship within 2 days. But some might need time to manufacture.
4. We are looking for distributors. If you are interested, please contact me.

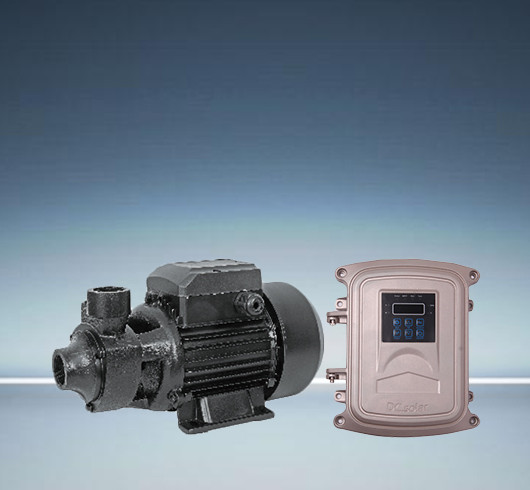

DC vortex surface solar pump:
The DC vortex surface solar pump, the water outlet and the pump body are made of cast iron. The maximum flow rate is 3 cubic meters per hour and the maximum head is 60 meters. It has the advantages of quiet, stable and reliable, energy saving and environmental protection.
Its main application scenes are:
The DC vortex surface solar pump for Household water, Irrigation, poultry farming, drip irrigation, Fountain system and garden irrigation.
HOW TO CHOOSE A PUMP
1Confirm you technical requiremt
How deep is your well(bore hole)?
How far is the distance between tank and well?
What's you requirement about the flow(L/H)?
2Compare your requiremt with out product
Calculate"Actual Pump Head"and find the proper pump with the right head.
Then you can choose the pump you want according to different folw and prices.

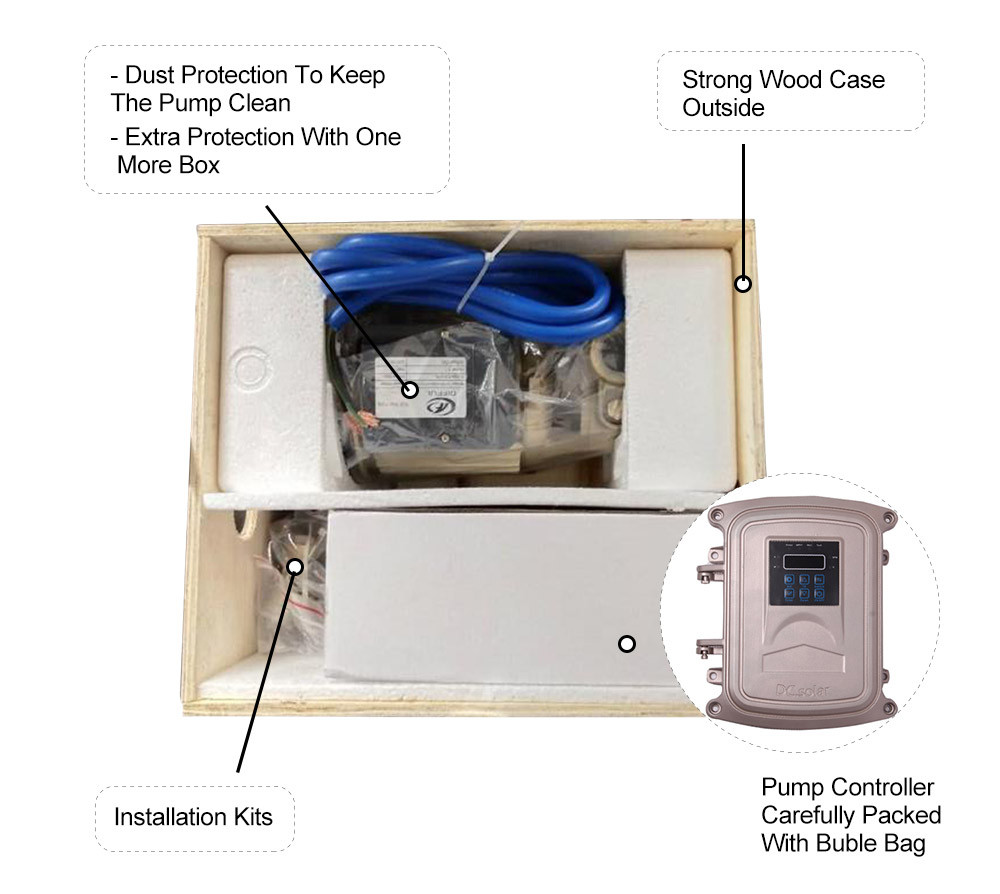

DC VORTEX SURFACE SOLAR PUMP PRODUCT PACKAGING

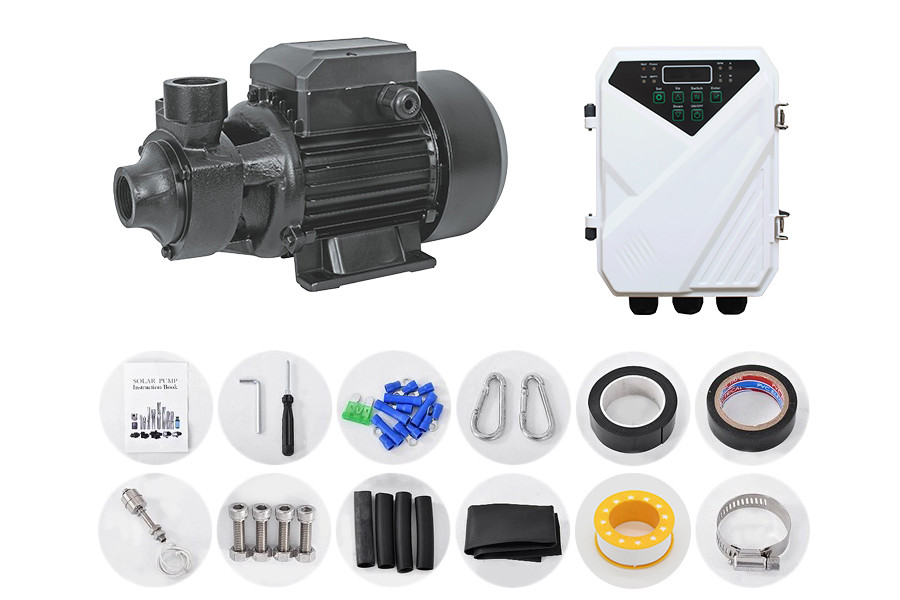

1What we get for you(Package Include):
- 1 x DC vortex surface solar pump with one 2m cable
- 1 x Pump controler with MPPT function
- 1 x Stainless steel float swith (sensor for tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
2What You need to get by yourself: (Package DO NOT Include)
- Suitable solar panels. There’re some suggestions in the instruction book.
- Poly pipe from pump to water tank. ( recommend 1 inch or over diameter poly pipe)
- Wire power cable (2 wires plus earth). we recommend cable size at least chicker than the original cable in the pump.
DC VORTEX SURFACE SOLAR PUMP PARAMETER
VORTEX SURFACE SOLAR PUMP Model Power Voltage Max flow(m3/h) Max head(m) Outlet(inch) DQB2.0-25-24-210 210 24 2 25 1" DQB2.0-30-24-280 280 24 2 30 1" DQB3.0-50-48-550 550 48 3 50 1" DQB3.0-65-72-750 750 72 3 65 1"
DC VORTEX SURFACE SOLAR PUMP CURVE
The solar PV system voltage needs to meet the voltage range in the figure below.
For example: The DQB2.0-25-24-210 model matches the solar panel voltage between 18V~48V.
HOW TO CHOOSE SOLAR PANEL
In the purchase option of this model is equipped with 1pc solar panel. power: 300W, open circuit voltage: 39.5V.
In the purchase option of this model is equipped with 2pc solar panel. power: 250W, open circuit voltage: 38V.
In the purchase option of this model is equipped with 2pc solar panel. power: 315W, open circuit voltage: 45.8V.
In the purchase option of this model is equipped with 4pc solar panel. power: 265W, open circuit voltage: 38V.
CONTROLLER INTERNAL WIRING DIAGRAM
Your item usually will be shipped within 1 business day once the full payment is confirmed. Every single item will be carefully packed......MORE
Where to ship?
We have three warehouses, Zhejiang, China and Houston,Texas, USA and sydney, Australia. We will arrange a warehouse closer to you to deliver the goods to you.
What if the product has quality problems?
Our water pump has a warranty period of two years and the solar panel warranty period is 10 years. During the warranty period, any quality problems caused by non-human factors were found. We will replace a new pump for you for free.
