Solar pump system construction
Solar water pump, also known as photovoltaic water pumping system, is mainly composed of solar water pump controller, DC water pump and solar battery array. The water pump can be selected according to the requirements of different heads and daily water consumption and equipped with solar arrays of corresponding power. The photovoltaic pump system is fully automatic,no need to be manually guarded, the system saves the battery of the energy storage device, directly drives the pump to lift water, and the operation is stable, which greatly reduces the construction and maintenance cost of the system.

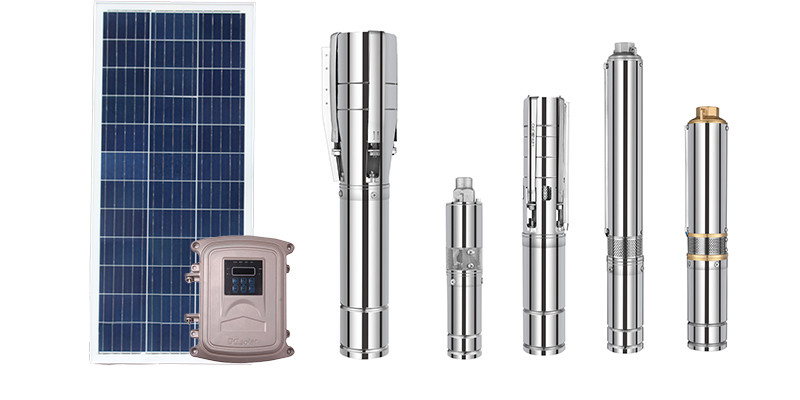

The main components of solar water pumps include:
1, photovoltaic array
It is made up of multiple solar panels connected in series,absorbing solar radiation energy and converting it into electric energy, that is, solar power generation, providing power for the whole system.
2, solar pump controller
Real-time control and adjustment of the operation of the system, when the sunshine is sufficient, the system is rated for operation.When the sunshine is insufficient, the set operating frequency is satisfied to ensure the full application of solar power.
3, DC water pump
Extract water from deep wells or rivers and lakes, inject water tanks, or directly into irrigation or fountain systems. Pool pumps, surface pumps, deep well pumps, centrifugal pumps, screw pumps, etc. can be used.
