WBS SOLAR PUMP- SOLAR WATER PUMPING SYSTEM APPLICATION AND TECHNICAL SOLUTIONS

WBS SOLAR PUMP- SOLAR WATER PUMPING SYSTEM APPLICATION AND TECHNICAL SOLUTIONS
Issue Time:2018-11-26


Today, there are still many areas where there is no electricity supply. Because there is no electricity, people in these places have difficulties in living, drinking water is difficult, and irrigation is difficult. The photovoltaic water pumping system has become the first choice for solving water problems with its advantages of easy installation, no manual compliance, low cost and zero carbon emissions.

solar water extraction system, also known as solar  pump system. The whole system consists of three parts: solar photovoltaic module, controller and water pump.




In the application of solar energy irrigation system,different regions and customers will have different needs. Therefore, different designs must be made for different needs.

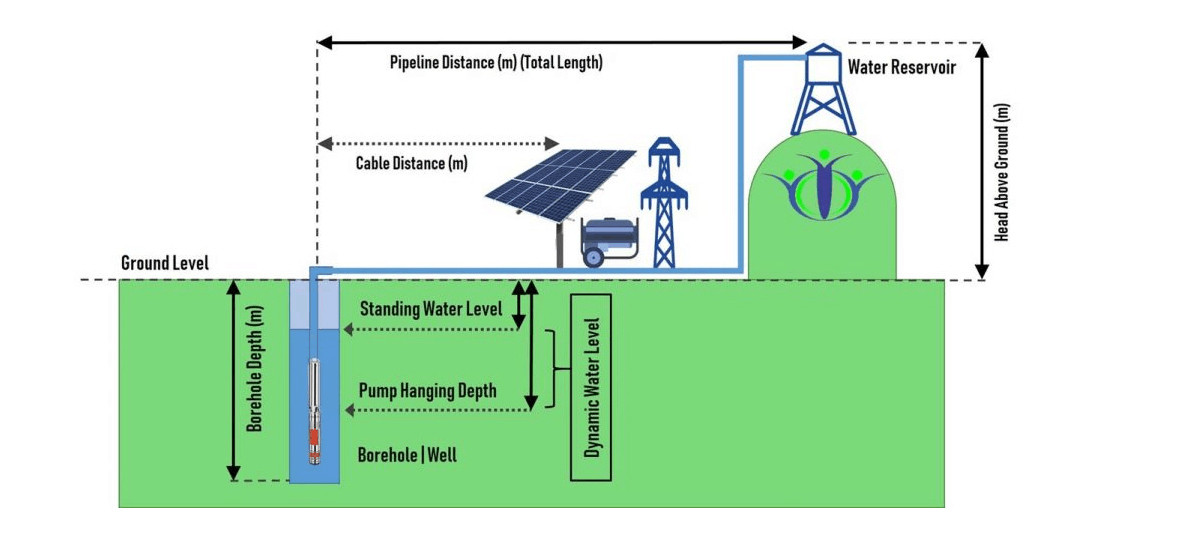

In the selection, it is necessary to determine the daily water consumption, head, and Wellhead diameter. According to these requirements,the pump's head, flow,  power, etc. are determined. Pick the right pump. Configure the appropriate controller and solar PV modules according to the pump. The controller power is between 1.1 and 1.3 times the pump motor power. The power of the solar photovoltaic module is between 1.3 and 1.5 times the power of the controller. Light-poor areas need to be allocated 2 times or more.



To find out more about solar pumping systems, you can click on the link below or contact us directly.
